Model Whirlpool 1835^3A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams
04 - BURNER SECTION
02 - MAIN TOP

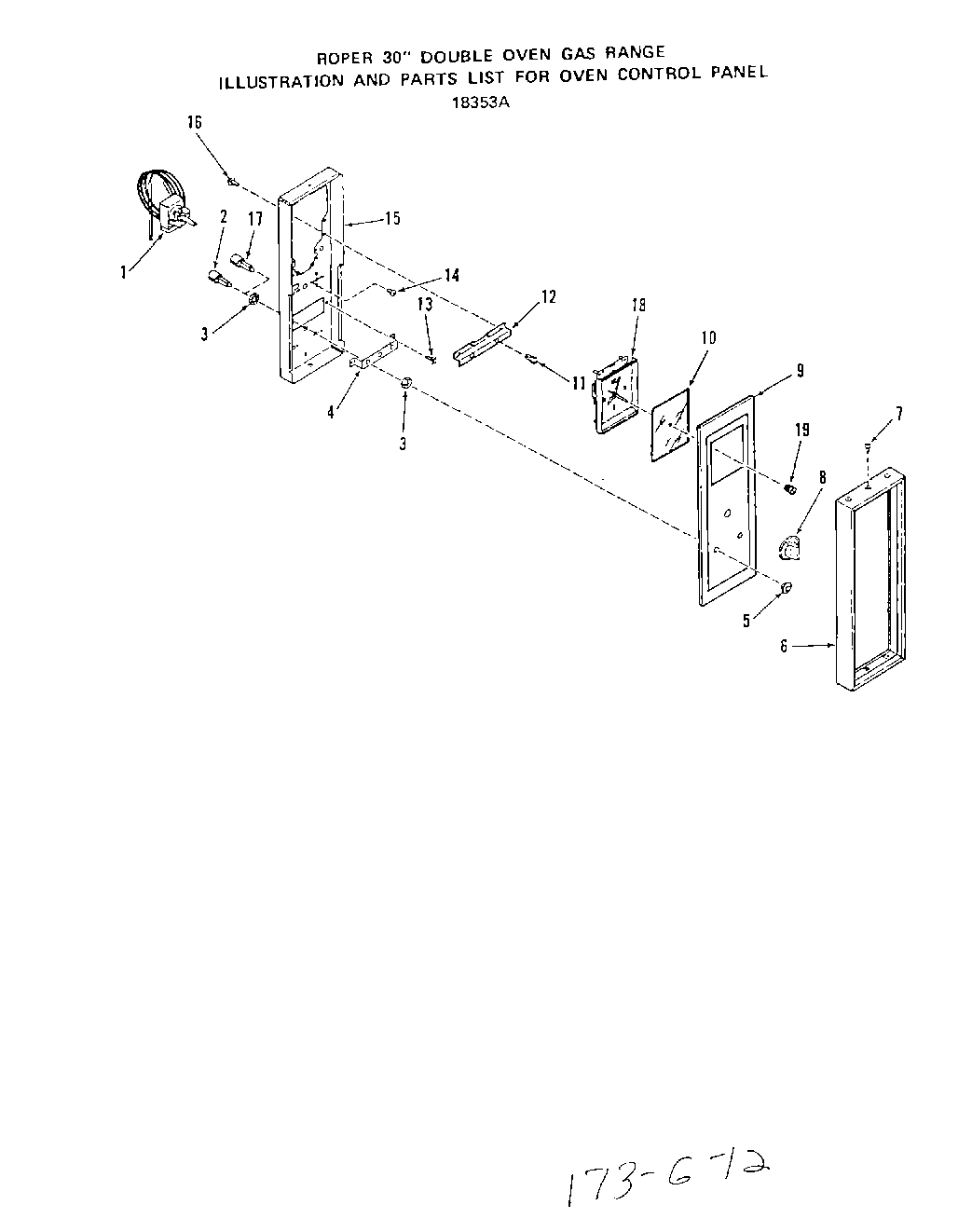

09 - OVEN CONTROL PANEL

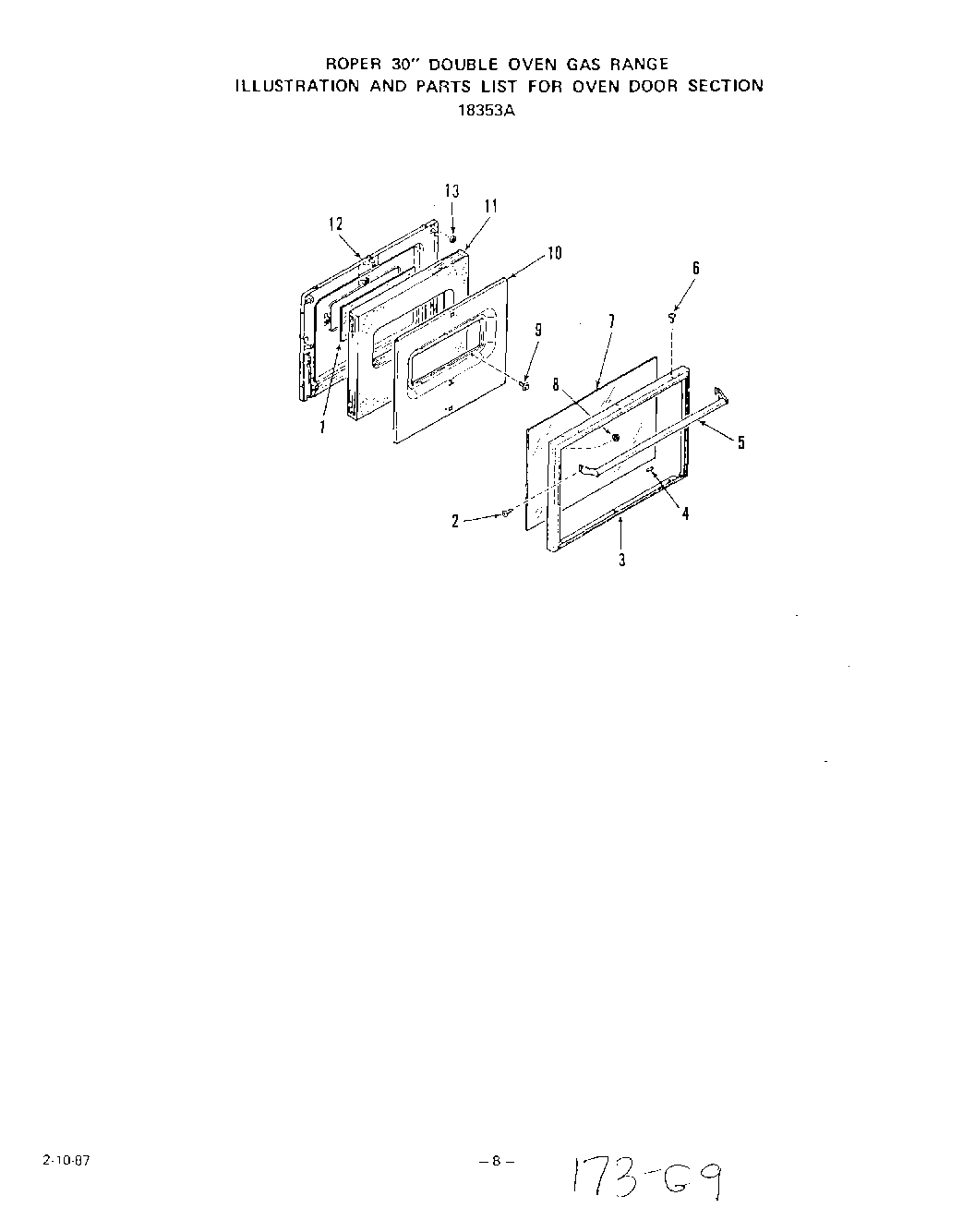

07 - OVEN DOOR

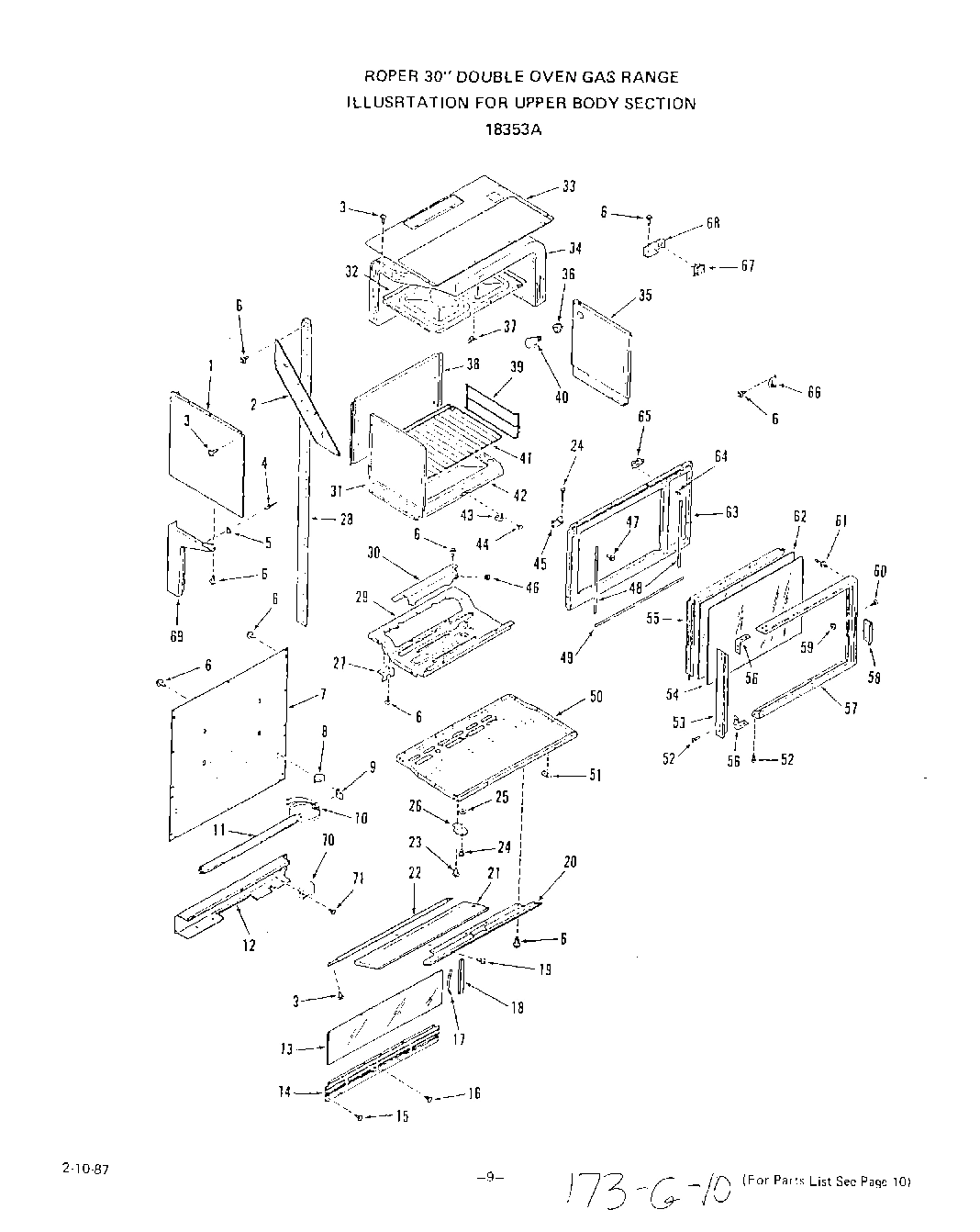

08 - UPPER BODY

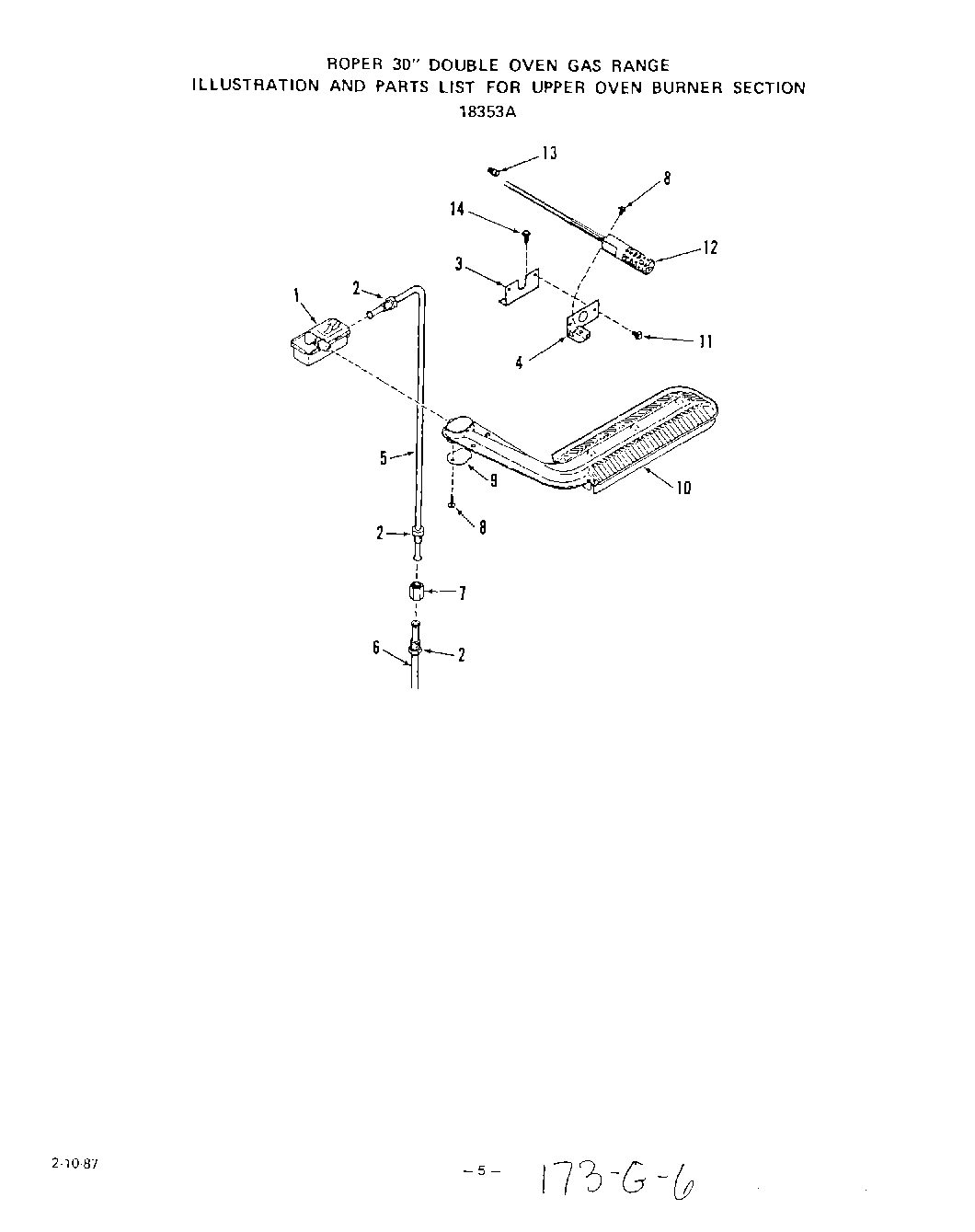

05 - UPPER OVEN BURNER SECTION

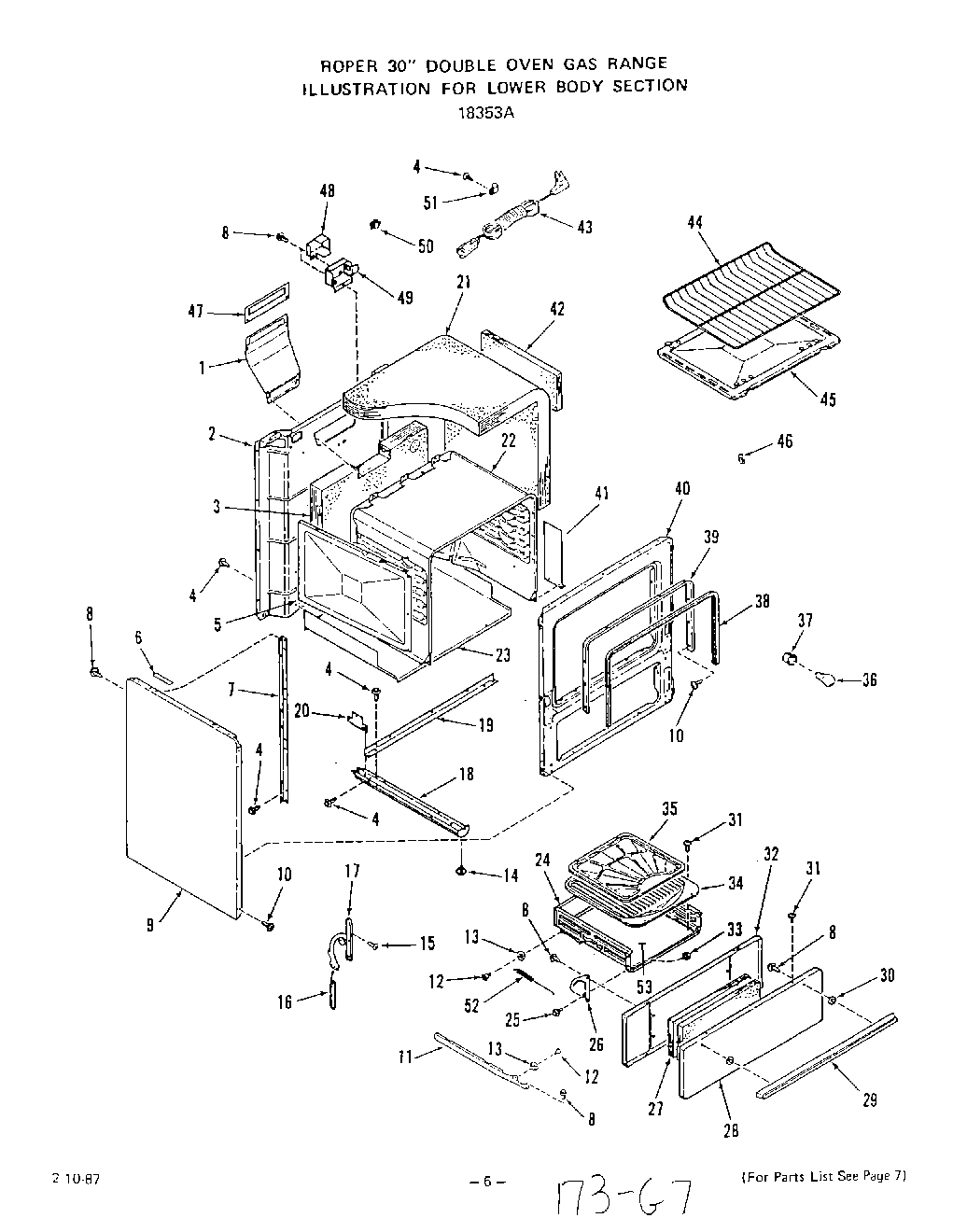

06 - LOWER BODY

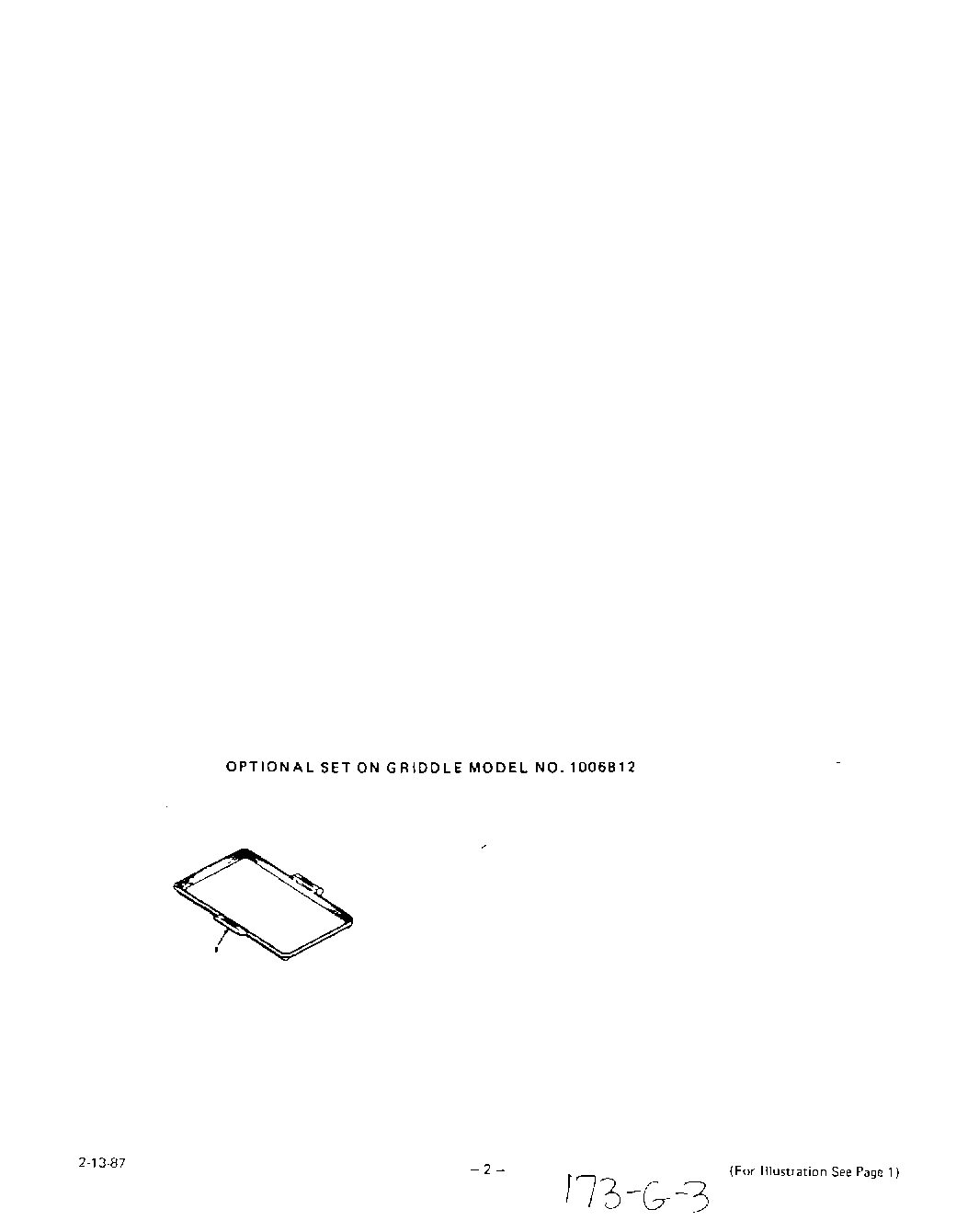

03 - GRIDDLE

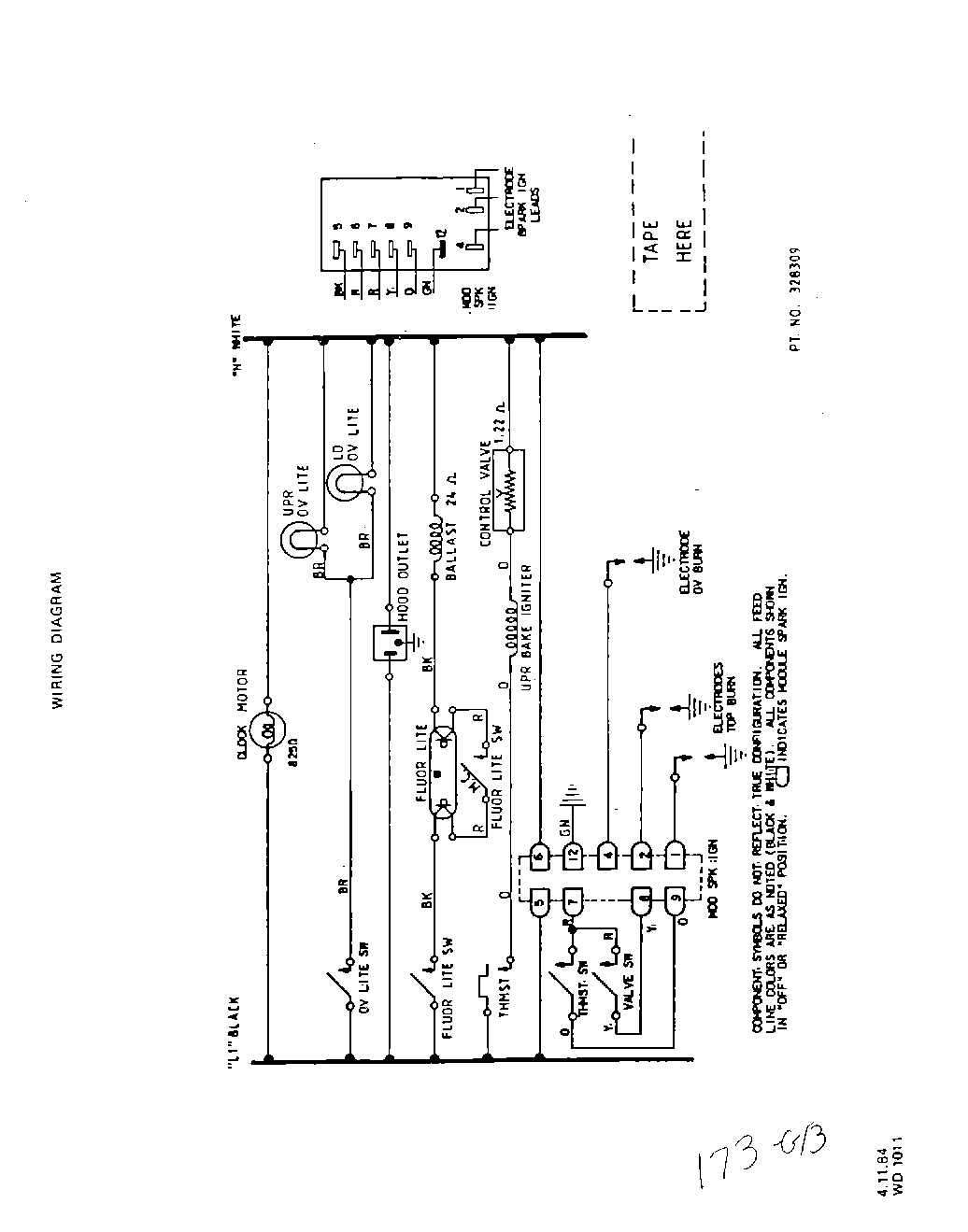

10 - WIRING DIAGRAM
Common parts from model Whirlpool 1835^3A DOUBLE OVEN GAS RANGE
xWire Harness WPL ARI8668A49 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Upper Oven Thermostat WPL 324372 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
White - Right WPL 323875 Contact Us For Availability
1
Almond - Right WPL 323879 Contact Us For Availability
1
White - Left WPL 323881 Contact Us For Availability
1
Almond-Left WPL 323885 Contact Us For Availability
1
Upper Oven Body Side WPL ARI8660A12 Contact Us For Availability
1
Control Valve WPL 326477 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Griddle WPL 289671 Contact Us For Availability
1
instructions WPL 289672 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
invert nut 3/8`` WPL 113384 Contact Us For Availability
2
Push Switch (Oven Lamp) WPL 306333 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
brace-cabinet side (lt. or rt.) WPL 325388 Contact Us For Availability
2
Main Back WPL 327366 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
hinge-main top hinge (lt. or rt. WPL ARI8649A98 Contact Us For Availability
3
Pal Nut (2 Req) WPL 236129 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
3
Bracket-Igniter WPL 325484 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
Right WPL 320921 Contact Us For Availability
4
Left WPL 320922 Contact Us For Availability
4
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
4
bracket-switch WPL 305729 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
Pop Rivet WPL 101523 Contact Us For Availability
4
Bracket-Igniter WPL 311689 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Trim Nut WPL 321667 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Retainer WPL 285523 Contact Us For Availability
5
Tubing 3/8`` (Union to Upper Cont. Valve) WPL 295037 Contact Us For Availability
5
retainer-insulation (lt. or rt.) WPL 327096 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Tubing 3/8`` (Union to Shut Off Valve) WPL 279542 Contact Us For Availability
6
Frame-Control Panel WPL 282279 Contact Us For Availability
6
screw 10-32x7/16`` WPL 322484 Contact Us For Availability
6
Spacer (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Right WPL 312455 Contact Us For Availability
7
Left WPL 327216 Contact Us For Availability
7
Electrode-Spark Igniter WPL ARI8653A69 Contact Us For Availability
7
Burner Box Bottom WPL 331575 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
7
Wire Cover WPL 324755 Contact Us For Availability
7
Union Connector 3/8`` WPL 113372 Contact Us For Availability
7
support-body side (lt. or rt.) WPL 327035 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
8
Knob-Upper Oven Thermostat WPL 324316 Contact Us For Availability
8
Shield-Wire WPL 321107 Contact Us For Availability
8
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
9
Control Curtain WPL 328529 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 324746 Contact Us For Availability
9
Air Shutter WPL 323455 Contact Us For Availability
9
White WPL 326055 Contact Us For Availability
9
Almond WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI8654A95 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Lens - Clock WPL 325334 Contact Us For Availability
10
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
10
Left WPL 327790 Contact Us For Availability
10
Right WPL 327791 Contact Us For Availability
10
Holder-Fluorescent Lamp WPL ARI8661A41 Contact Us For Availability
10
oven burner asm WPL 331854 Contact Us For Availability
11
Manifold Pipe WPL 328588 Contact Us For Availability
11
Left WPL 328808 Contact Us For Availability
11
Right WPL 328924 Contact Us For Availability
11
Bracket-Manifold Panel WPL ARI8650A68 Contact Us For Availability
11
clip-tubular (4 req) WPL 293577 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
11
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
11
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
11
Right WPL 296327 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. Keys 12 & 13) WPL ARI8655A39 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
left WPL 328498 Contact Us For Availability
12
right WPL 328499 Contact Us For Availability
12
End Cap WPL ARI8651A70 Contact Us For Availability
12
Bracket-Clock (2 Req) WPL 328093 Contact Us For Availability
12
Lining-Oven Door WPL 325946 Contact Us For Availability
12
Wire Cover-Fluorescent Lamp WPL 327045 Contact Us For Availability
12
Igniter WPL 319887 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
13
Washer-Felt WPL 335945 Contact Us For Availability
13
Fluorescent Lamp Glass WPL 324747 Contact Us For Availability
13
Wire Connector (2 Req) WPL 103595 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
Knob-Gas Valve (4 Reg) WPL 328805 Contact Us For Availability
14
G.M. Screw 8-32x3/16`` WPL 155021 Contact Us For Availability
14
lower retainer-fluorescent lamp glass WPL 327622 Contact Us For Availability
14
Leg Leveler (4 Req) WPL 326125 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
Catch - Main Top Strike WPL 24667 Contact Us For Availability
15
Mounting Panel-Controls WPL 305727 Contact Us For Availability
15
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
16
Tubing 3/8`` (Thermostat to Lo.Ov. Control) WPL 315807 Contact Us For Availability
16
Knob-Thermostat WPL 331768 Contact Us For Availability
16
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
16
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
16
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
17
Tubing 3/16`` WPL 322447 Contact Us For Availability
17
Aeration Pan WPL 322888 Contact Us For Availability
17
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
17
Spring - Lamp Glass End Trim (Lt or Rt) WPL 286327 Contact Us For Availability
17
Right WPL 329653 Contact Us For Availability
17
Left WPL 329654 Contact Us For Availability
17
Hinge-Oven Door WPL ARI8656A48 Contact Us For Availability
18
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
18
Manifold Panel WPL 331763 Contact Us For Availability
18
Clock w/4 Hr. Timer WPL 328521 Contact Us For Availability
18
End Trim - Lamp Glass (Lt or Rt) WPL 299979 Contact Us For Availability
18
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
19
Clamp-Support Rod WPL 326348 Contact Us For Availability
19
Knob-Clock WPL 294810 Contact Us For Availability
19
Switches - Gas Valve WPL 326870 Contact Us For Availability
19
Lower WPL 328118 Contact Us For Availability
19
Upper WPL 328308 Contact Us For Availability
19
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
19
Strap-Main Back & Base WPL 327026 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
White WPL 323820 Contact Us For Availability
20
Almond WPL 323824 Contact Us For Availability
20
trim-filter WPL ARI8662A73 Contact Us For Availability
20
Left WPL 327022 Contact Us For Availability
20
Right WPL 327024 Contact Us For Availability
20
bracket-support & base WPL ARI8657A27 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
support rod main WPL 326066 Contact Us For Availability
21
White WPL 327578 Contact Us For Availability
21
Almond WPL 327582 Contact Us For Availability
21
Cover-Vent WPL ARI8663A10 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
screw 10-32x3/4`` WPL 326662 Contact Us For Availability
22
White WPL 320127 Contact Us For Availability
22
Almond WPL 320131 Contact Us For Availability
22
upper retainer-lamp glass WPL ARI8664A27 Contact Us For Availability
22
Oven Body WPL 324957 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
gas valve (4 req) (inc`s. 20) WPL 331996 Contact Us For Availability
24
Hinge Pin WPL 281724 Contact Us For Availability
24
broiler drawer (inc`s. keys 12 & 13) WPL 331566 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
25
White WPL 328907 Contact Us For Availability
25
Almond WPL 328911 Contact Us For Availability
25
Main Top WPL ARI8652A94 Contact Us For Availability
25
Washer WPL 67710 Contact Us For Availability
25
Shoulder Rivet WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
washer catch mt. WPL 310218 Contact Us For Availability
26
lower hinge-oven door WPL 323886 Contact Us For Availability
26
Right WPL 327482 Contact Us For Availability
26
Left WPL 327483 Contact Us For Availability
26
Hinge-Broiler Drawer WPL ARI8658A81 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
27
Bracket-Oven Orifice WPL 109289 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
support-upper oven (lt. or rt.) WPL 327030 Contact Us For Availability
28
White WPL 326287 Contact Us For Availability
28
Almond WPL 326291 Contact Us For Availability
28
front panel-broiler door WPL ARI8659A56 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
29
baffle-oven burner WPL 302869 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
Access Plate WPL 302870 Contact Us For Availability
30
spacer-handle WPL 302343 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
31
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
31
Oven Side-Left WPL 323953 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
Oven Top WPL 294296 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
White WPL 323888 Contact Us For Availability
33
Almond WPL 323892 Contact Us For Availability
33
Oven Cabinet Top WPL ARI8665A29 Contact Us For Availability
33
Keps Nut 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
insulation-side, top & back (1 piece) WPL 324218 Contact Us For Availability
34
broiler pan WPL 331567 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
oven side-rt. WPL 323951 Contact Us For Availability
35
Broiler Pan Grid WPL 331588 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 329651 Contact Us For Availability
36
Oven Lamp Bulb WPL 111257 Contact Us For Availability
37
Shut Off Valve WPL 326830 Contact Us For Availability
37
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
38
Oven Back WPL 305541 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Oven Rack Guide (Rt. or Lt.) WPL 305628 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
40
front frame WPL 332686 Contact Us For Availability
41
Oven Rack (1 Req) WPL 305629 Contact Us For Availability
41
Retainer-Insulation (Rt. or Lt.) WPL 328984 Contact Us For Availability
42
Oven Bottom (Inc`s. 43 & 44) WPL 288655 Contact Us For Availability
43
Clip WPL 325485 Contact Us For Availability
43
Range Service Cord WPL 235822 Contact Us For Availability
44
Rivet WPL 99139 Contact Us For Availability
44
Oven Rack (2 Req) WPL 326068 Contact Us For Availability
45
upper hinge-ove WPL 281781 Contact Us For Availability
45
Oven Bottom WPL 327084 Contact Us For Availability
46
Thermostat Bulb Clip (2 Req) WPL 115533 Contact Us For Availability
46
WPL 98761 WPL 98761 Contact Us For Availability
47
WPL 321162 WPL 321162 Contact Us For Availability
47
I WPL 329314 Contact Us For Availability
48
WPL 292912 WPL 292912 Contact Us For Availability
48
WPL 327252 WPL 327252 Contact Us For Availability
49
WPL 292913 WPL 292913 Contact Us For Availability
49
WPL 327232 WPL 327232 Contact Us For Availability
50
WPL 323869 WPL 323869 Contact Us For Availability
50
WPL 232150 WPL 232150 Contact Us For Availability
51
WPL 324157 WPL 324157 Contact Us For Availability
51
WPL 106767 WPL 106767 Contact Us For Availability
52
WPL 102559 WPL 102559 Contact Us For Availability
52
WPL 327481 WPL 327481 Contact Us For Availability
53
WPL 281846 WPL 281846 Contact Us For Availability
53
WPL 331554 WPL 331554 Contact Us For Availability
54
WPL 308010 WPL 308010 Contact Us For Availability
55
WPL 281992 WPL 281992 Contact Us For Availability
56
WPL 292907 WPL 292907 Contact Us For Availability
57
WPL 281845 WPL 281845 Contact Us For Availability
58
WPL 293051 WPL 293051 Contact Us For Availability
59
WPL 239764 WPL 239764 Contact Us For Availability
60
WPL 235134 WPL 235134 Contact Us For Availability
61
WPL 299263 WPL 299263 Contact Us For Availability
62
WPL 293049 WPL 293049 Contact Us For Availability
63
WPL 331876 WPL 331876 Contact Us For Availability
64
WPL 78565 WPL 78565 Contact Us For Availability
64
WPL 97411 WPL 97411 Contact Us For Availability
64
WPL ARI8666A74 WPL ARI8666A74 Contact Us For Availability
65
WPL 97003 WPL 97003 Contact Us For Availability
66
WPL 98186 WPL 98186 Contact Us For Availability
67
WPL 109180 WPL 109180 Contact Us For Availability
68
WPL 293747 WPL 293747 Contact Us For Availability
69
WPL 325283 WPL 325283 Contact Us For Availability
69
WPL 325287 WPL 325287 Contact Us For Availability
69
WPL 325289 WPL 325289 Contact Us For Availability
69
WPL 325293 WPL 325293 Contact Us For Availability
69
WPL ARI8667A66 WPL ARI8667A66 Contact Us For Availability
70
WPL 326136 WPL 326136 Contact Us For Availability
71
WPL 329382 WPL 329382 Contact Us For Availability
× ![]()
